Soldering
|
Used Equipment Details: |
Item #: |
Image: |

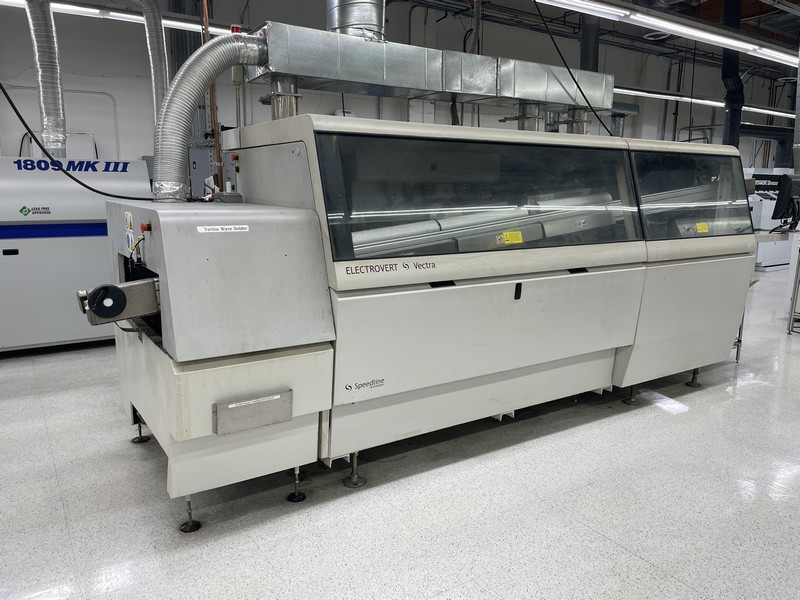

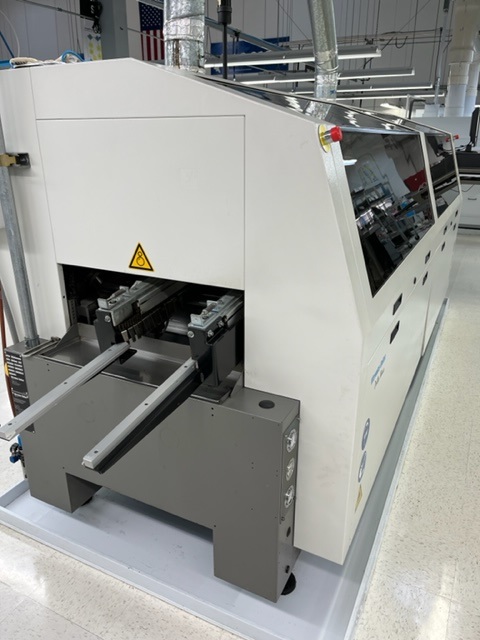

Speedline Vectra Elite Dual Pot Wave Solder Machine.
SOLD |
Finger
conveyor with external Servo Jet spray fluxer, 3 IR preheaters,
2 dual wave pots with Ultra Fill nozzles and nitrogen shrouds
but no nitrogen, full of sn63 lead and S100C no lead solder and
finger cleaner. Also includes drosss reduction system. New 2006.
Capacity of the full pots with dual wave is: Tin/Lead 1810#,
Lead Free 1601#. .
13 feet x 5 feet
 |
SO4016 |
 |
|

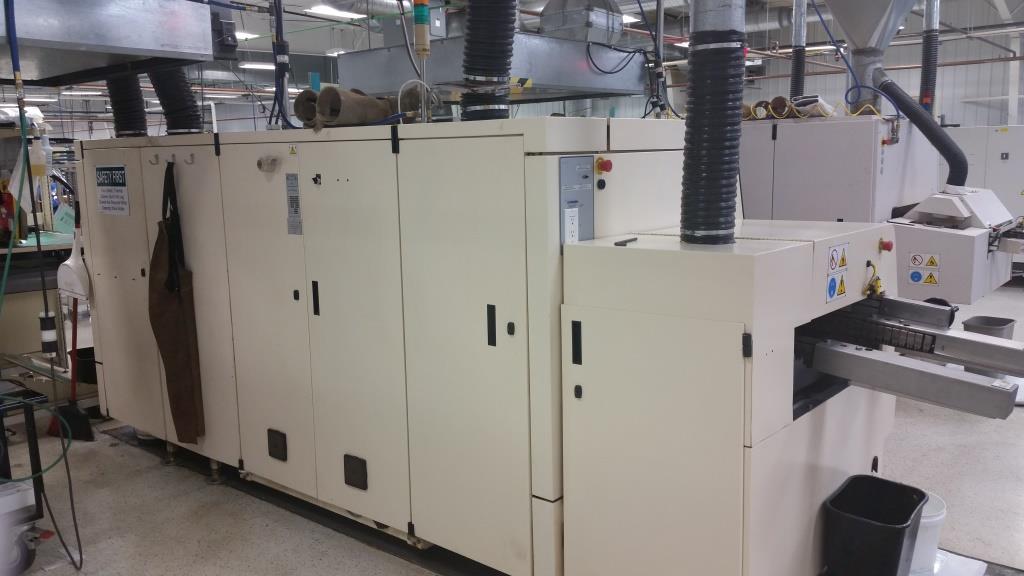

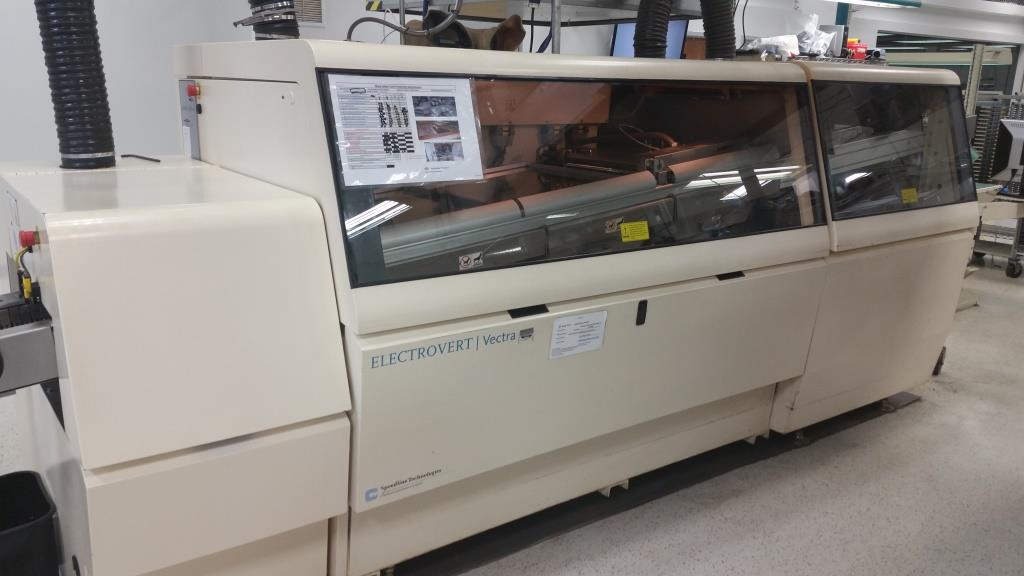

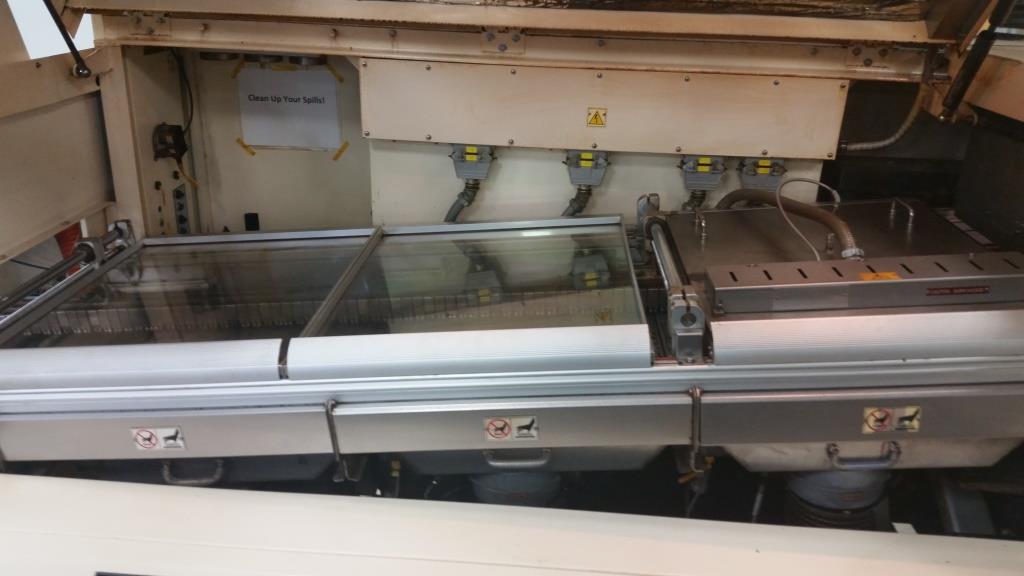

Speedline Vectra Wave Solder Machine |
18 inch finger conveyor
computerized wave solder machine with finger cleaner and
external foam fluxer. Has 3 lower and one upper convection
preheaters, dual wave with wave height sensor, cast iron solder pot, no solder
and nitrogen. 480 volt, 3 phase new 10/2000 13 feet x 5 feet
 |
SO3945 |
 |
Speedline Vectra No-Lead Wave solder Machine
|
2007 no lead wave with 18” finger conveyor, dual wave and spray
fluxer. 440 volt, 3 phase, 40 KVA
 |
SO4008 |
 |
Speedline Vectra Wave Solder Machine
SOLD |
Very clean machine, appears to have low hours. Has Selecta Spray
fluxer, 18 inch finger conveyor with a mix of L and V fingers,
center board support and finger cleaner. Six feet of preheat,
Solder pot with Lambda and rotary chip waves. Pot full of 1400+
pounds of leaded solder (can be made a lead free machine). S/N 11877655. Machine is 13 feet long and 5 feet wide.
208 volt, 3 phase.
 |
SO4001 |
 |

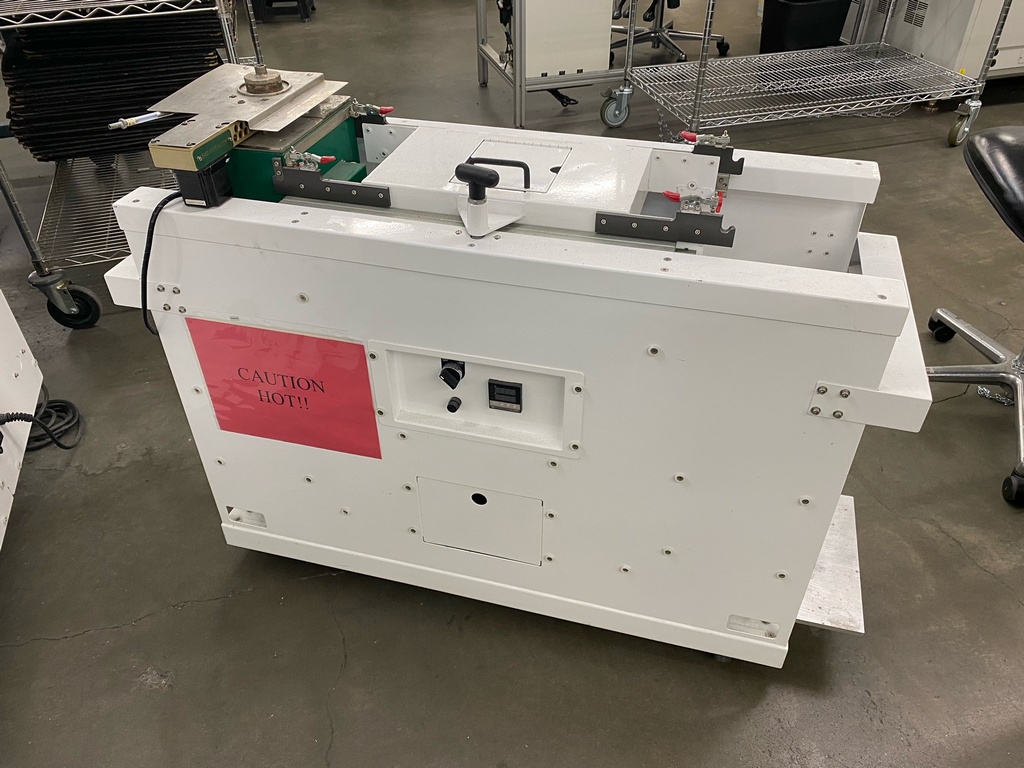

KISS LTS 200 Lead tinning Machine
SOLD |
The solder used is SN63 Electrolytic. The mfr. date was
2/17/2010 and the approximate hours used is 40-50.
|
SO4007 |
 |
|
ATI Wave Exit Conveyor |
Decline conveyor with cooling fans.
6’ long, 36” from floor at high end with 18”, new flat belt.
 |
F-1 |
 |
Electrovert Econopak I Wave Solder Machine
SOLD |
Manual 16 inch finger conveyor wave solder machine with foam
fluxer, 2 convection preheaters, Lambda and Chip (not working,
bad gear box) waves, roll out solder pot and finger cleaner.
 |
SO3985 |
 |
Pillarhouse Amethyst Selective Soldering System
SOLD
|
In-line selective soldering machine. Includes fluxer, preheater
and solder machine. New 2006. S/N AM010
 |
SM3985 |
 |
Speedline Electra Wave Solder Machine
SOLD |
20" finger conveyor machine with spray
fluxer, convection preheat, dual wave and full pot of SN63
solder. Special low price.
 |
SO4005 |
 |

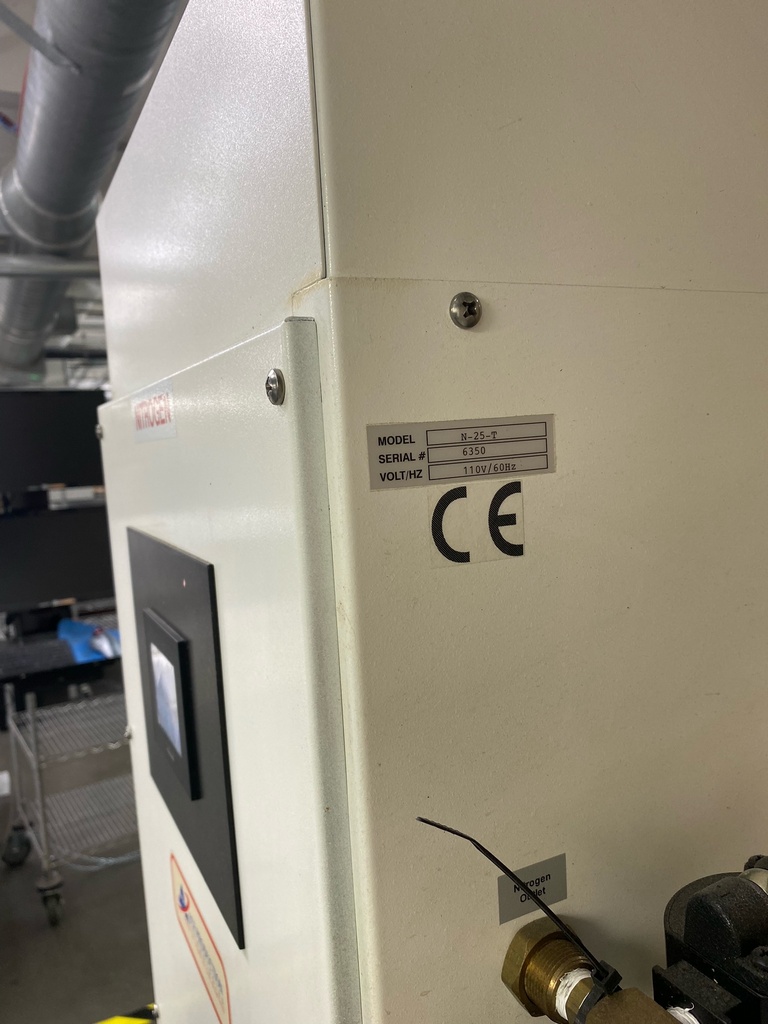

On-site PRO-N-15 High Purity Nitrogen Generator for Selective
Soldering Machine
SOLD |
Produces up to 51 SCFH at a purity of 99.995. 60 gallon tank
mounted system. Requires approx. 8.5 SCFM compressed air at 100
psig. Outlet pressure around 60 psi. Fully automatic with
pressure switch, pre filters and pressure regulator, Control
panel with gauges, hour meter and power switch. Includes
Cermatec Model 7100 Oqygen analyzer. 1625 hours.26 inches by 26 inches by
74 inches high. |
SM3951 |
 |
Speedline Electra Wave Solder Machine
SOLD |
Nice computer controlled machine in very good condition. 20 or 24 inch width finger conveyor with finger
cleaner; Has an external Sensbey spray fluxer; 6 feet of lower
convection preheat, 1 topside IR preheater; roll out solder pot
with Lambda and chip waves; use for lead or no lead, currently
was running SN63, Just removed from line. New 1999.
 |
SO3987 |
 |
|
2006 Vitronics Soltec mySelective 6745
SOLD
|
Two solder pots: (1) 63/37 PB (1) SAC305 PB-Free; 400 VAC 10 kVA
(transformer Included); 410mm x 410mm Standard Gripper;
Preheater with 9 Elements; Pressurized dropjet 130 micron flux
system; U-Rotation for +180 to -180 degrees; Easyteach II
software in Windows XP operating system; 10 degree tilt; Leaded
nozzles 4mm, 6mm, 8mm;
Lead free nozzles 4mm, 6mm, 8mm, 10mm. New 2006, in like new
condition.
|
SM3987 |
 |

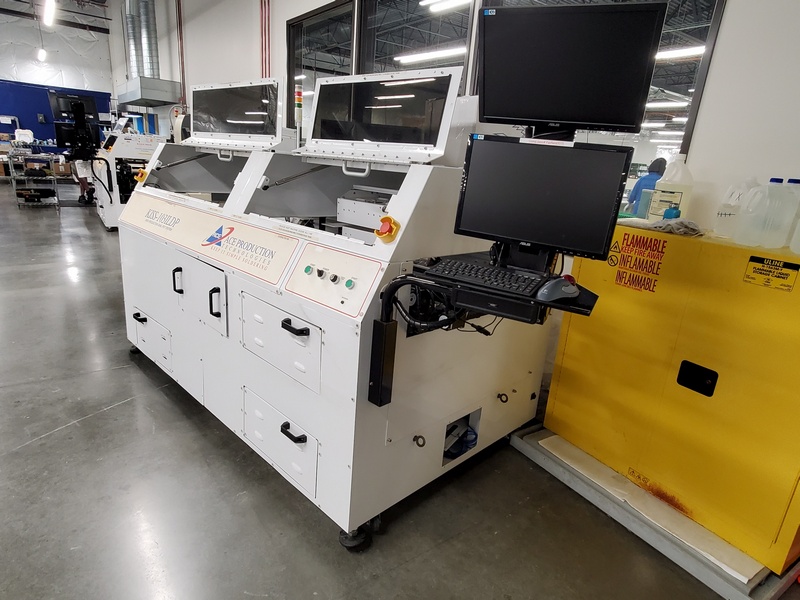

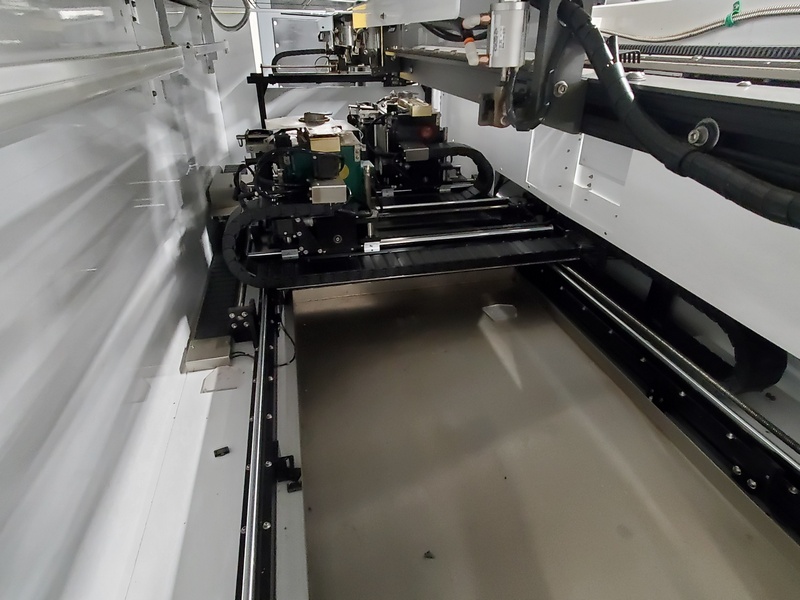

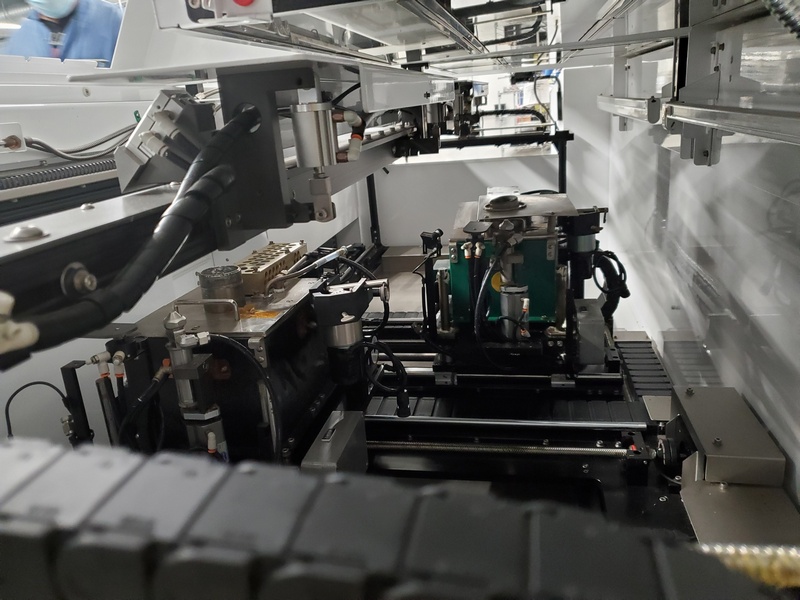

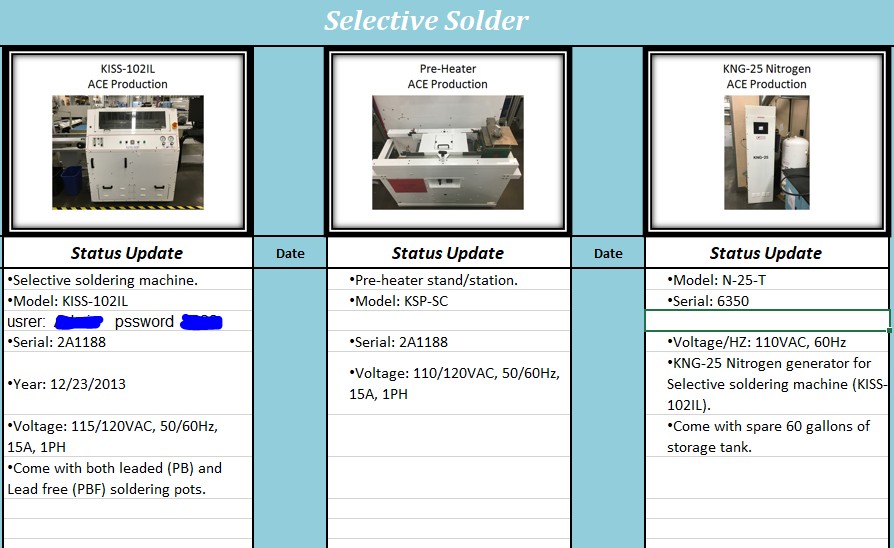

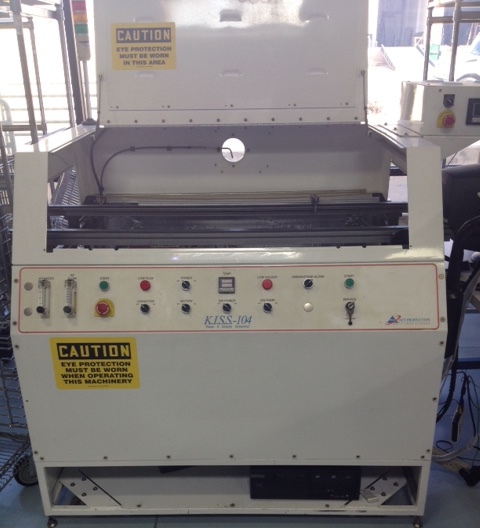

ACE KISS 101 Selective Soldering Machine
SOLD |
Selective Soldering System,
Includes both Leaded and Lead Free Solder Pots, Semi-Automatic
 |
SO3973 |
 |
Pillarhouse Orissa 300 Selective Soldering Machine
SOLD |
2 Lead free selective solder machines.
Using AP1 nozzles. Built in June - 2005.
purchased for $95k each. The machines were taken off line
in January 2009. Up to 12' x 12" boards. Have SMEMA
Conveyors.
No fluxer, soldering only... however, the actual process ran
a no clean flux from Tamura. one lead free solder pot with
each machine, SAC 305, There are no preheaters on these
machines.
|
SM3987 |
 |
Pillarhouse Jade S200
Selective Soldering Machine
SOLD |
Model: Jade S200, Serial #: JA130, Manufactured: 2006
Software: PillarCOMM Version 3.7 Build 15 Firmware
3.7.5-04/10/2006. Currently the machine is in 100% operational
condition and configured with a Pb-free solder pot
(silver free, Indium Sn995) and WS flux (alcohol based, Alpha
857). Included is an extra solder pot with leaded solder.

|
SM3983 |
 |
HughesTCW 116 Hot Bar Reflow
SOLD |
Hughes 2/4 Sided Reflow system. Have 2 systems with extra heads.
Have manuals. |
SM3801 |
 |
Novastar SPA-400 Selective Soldering Machine
SOLD |
Has bottom pre heat and sliding load/unload fixture.
Max board size is 16 inches X 16 inches. Lead free
titanium solder pot, 400C max temperature, Nitrogen
 |
SO3946 |
 |

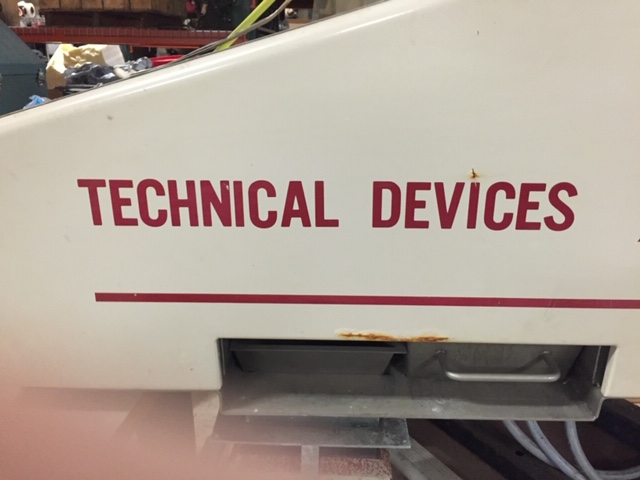

Technical Devices NU-Era Jr. Wave soldering Machine
SOLD |
Nu-Era Jr. 16 inch pallet conveyor wave solder machine. S/N
7096-465, 208 volt, 3 phase, 48 amps.
 |
SO3926 |
 |
Tyco Opus3 Selective Soldering System
SOLD
|
The Opus 3 is a four-axis Cartesian Robot designed
specifically for selectively soldering through-hole and odd-form
components into surface-mount and mixed-technology printed
circuit boards from the bottom side without inverting the PCB.
The Opus 3 with Gaussian solder wave technology is a completely
tool-less system for almost any soldering application. Has
vision system for witnessing soldering. Can be used in-line or
stand alone. Just reconditioned in April 2011.
Manufacture date - 06/05/06;
208/220v, 50/60Hz, 40 amp, 1 ph.; Includes - Computer, LCD
monitor,
keyboard and ball mouse.
DELIVERY, INSTALLATION AND TRAINING AVAILABLE FOR THIS
SELECTIVE SOLDERING SYSTEM
|
SO3919 |
 |
Electrovert Mini Pak 300 Wave Solder Machine
SOLD |
12 inch table top, finger conveyor wave solder machine. 220
volt, single phase, 9.5 KVA. S/N MPK1-30220-0477, New March
1992.
 |
SO3776 |
 |

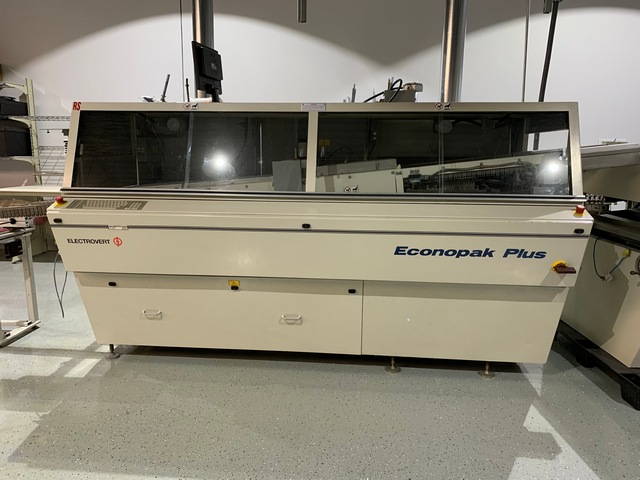

Electrovert Econopak 400 Plus No
Lead Wave Solder Machine
SOLD |
No lead wave solder machine with spray fluxer, finger conveyor
and cleaner, 2 lower convection and one top IR preheaters, Roll
out solder pot with Lambda wave. 440 volt, 3 phase, 60 KVA.
|
SO3717 |
 |
Novastar Spartan 12D Wave solder Machine
SOLD |
12" dual wave pallet machine with enclosed stand, foam fluxer
and 2 pallets. |
SO3759 |
|

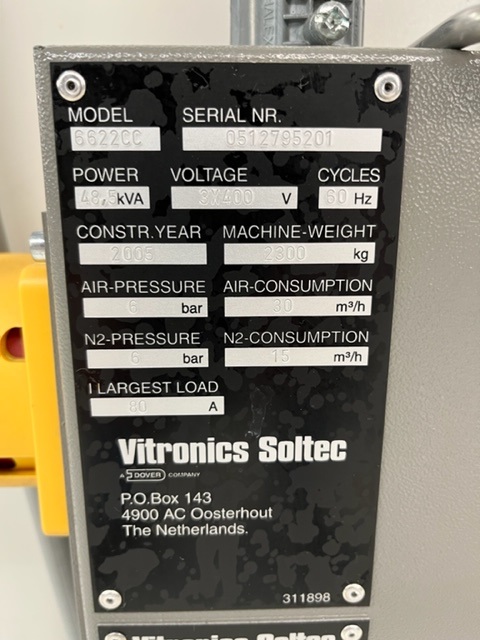

Dover
Soltec Delta Wave 6622C
No Lead Wave Solder Machine
SOLD |
Lead Free solder machine ready to go and filled with 800Kg
(1800lbs )of
Lead-Free Solder SN100C (Sn-Cu-Ni+Ge). 2 Machines available, 1
with foam fluxer and one with spray fluxer,
1.8 m Preheat - 3 Zone calrod on top and forced convection below
Chip wave 450 mm and smart wave 450mm, tin level control, finger
cleaner brush, extended in-feed, finger & pcb crash detection,
PC controlled with 999 recipe storage, tracking system, V-Shaped
fingers and accurate frequency invertors for motors and PID
control for heating.
48.5 kva, 3x 400V 60 Hz with transformer. Machine weight 2300Kg
5200 lbs, 4'3"W X 11'L X 4'9"H. S/N
0103658201 and 0103658101. New 2001
|
SO3723 |
|
|
Technical Devices
18" Nu-Era MP Computerized Wave Solder Machine
SOLD
|
18" Nu-Era MP
computerized machine with Sono-Flux 9500 spray fluxer, 2 top convection
and 2 lower IR preheaters, roll out solder pot with dual waves,
finger cleaner, computer, monitor and manuals.
Electrical Information: 240v, 3ph, 60Hz, 91 amps
Model: NU/ERA MP18" WSM, S/N: 8500-775
|
|
|
