Test & Inspection

SM4727

Solder Past Inspection New 2010

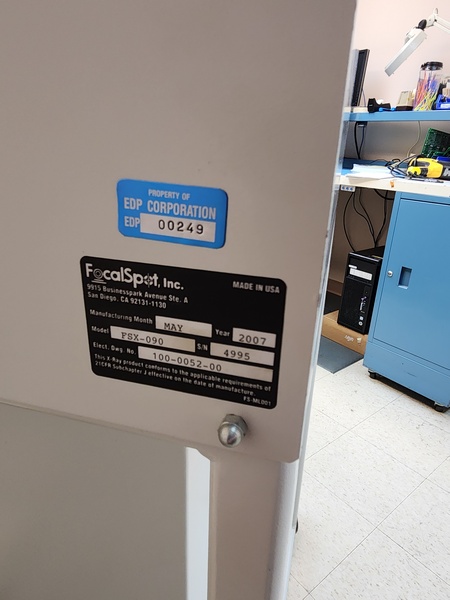

S/N 4995 New 2007

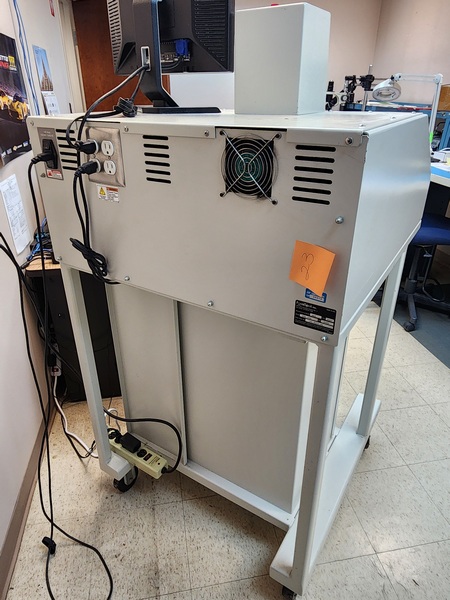

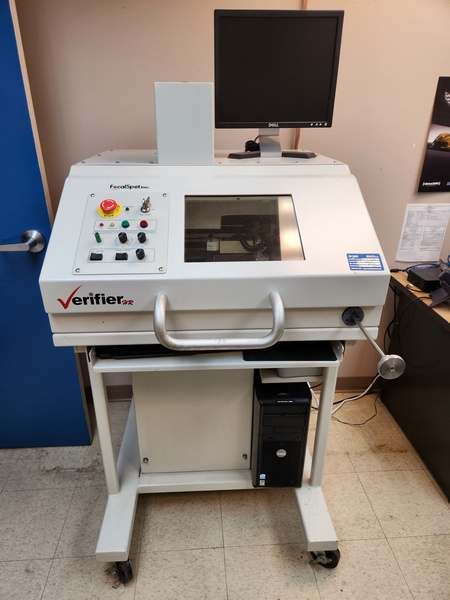

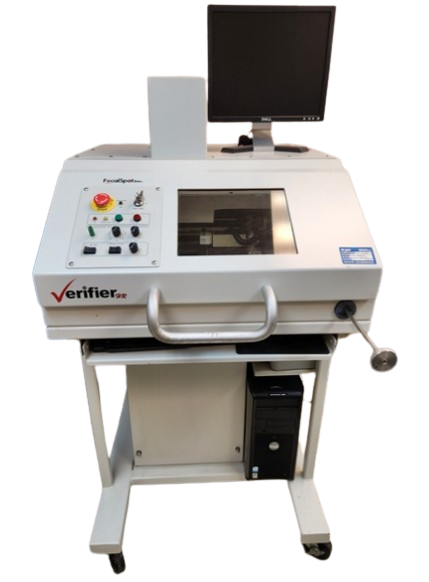

The Verifier HR is a high-resolution and high-magnification x-ray system designed for fast intuitive operation. The Verifier HRs’ small 32 x 34″ footprint design, ease-of-use and high-quality imaging makes it well suited for virtually any quality inspection and defect detection application

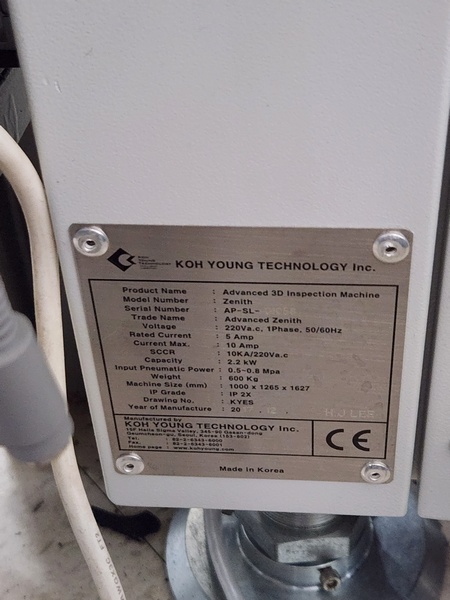

S/N AP-SL-01058 & CN47391026  New 2017

New 2013

TE5008

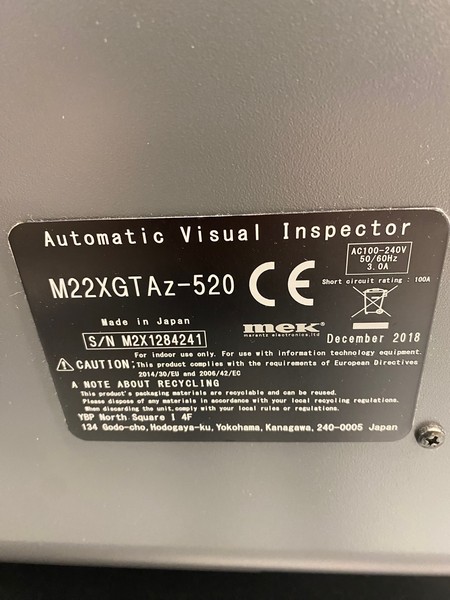

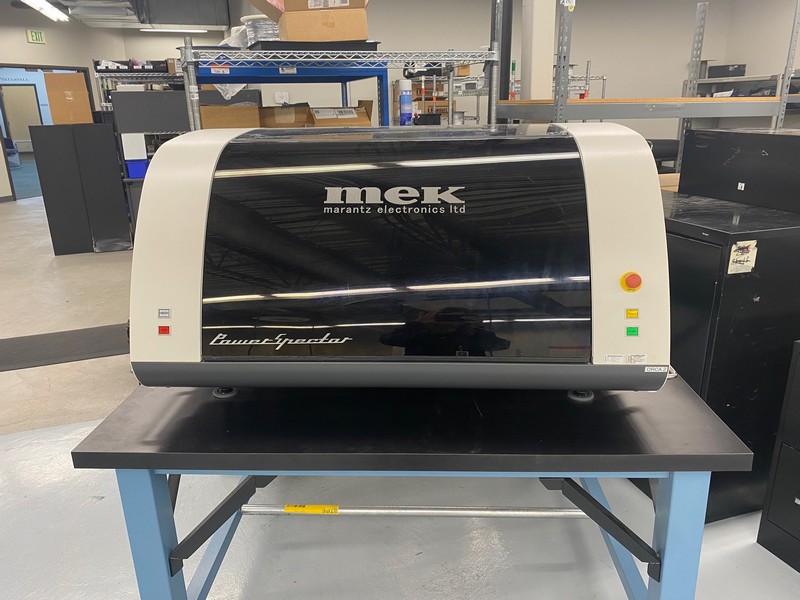

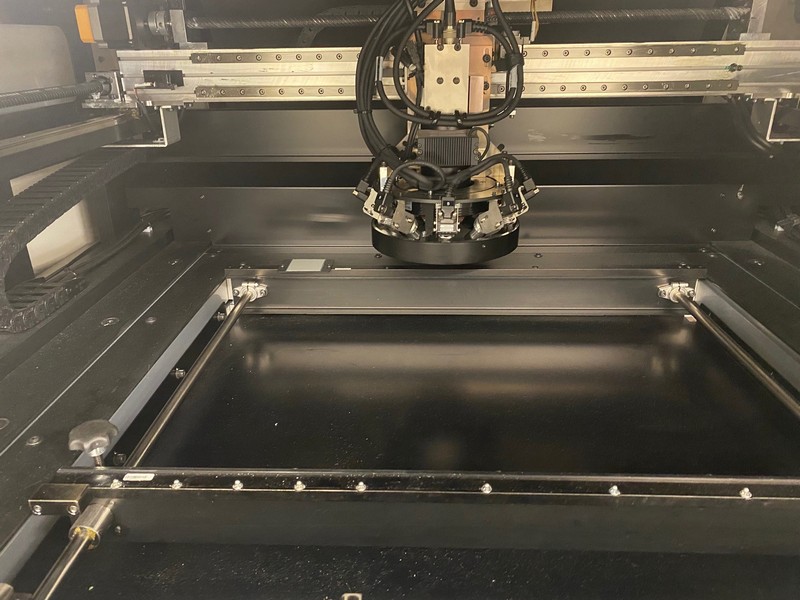

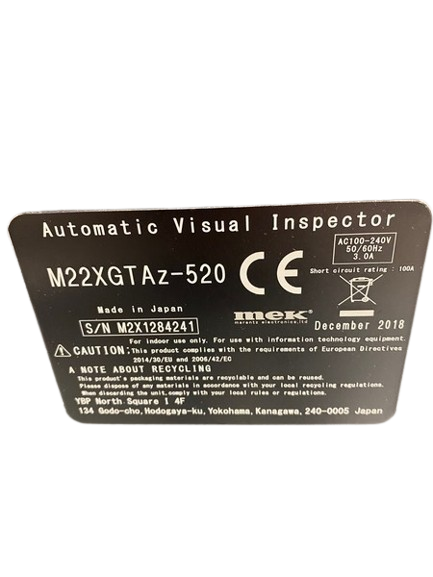

Desktop 3D Automatic Optical Inspection system. New 2018. High Speed 90Fps USB 3 Vision Cameras; Multi-color 4 angle lighting with Line Source Coaxial Lighting and Meniscus Profiler; Unique 3D Stereoscopic Vision; Can handle boards 520x460mm (20.5” x 18.1″ )

TE4708

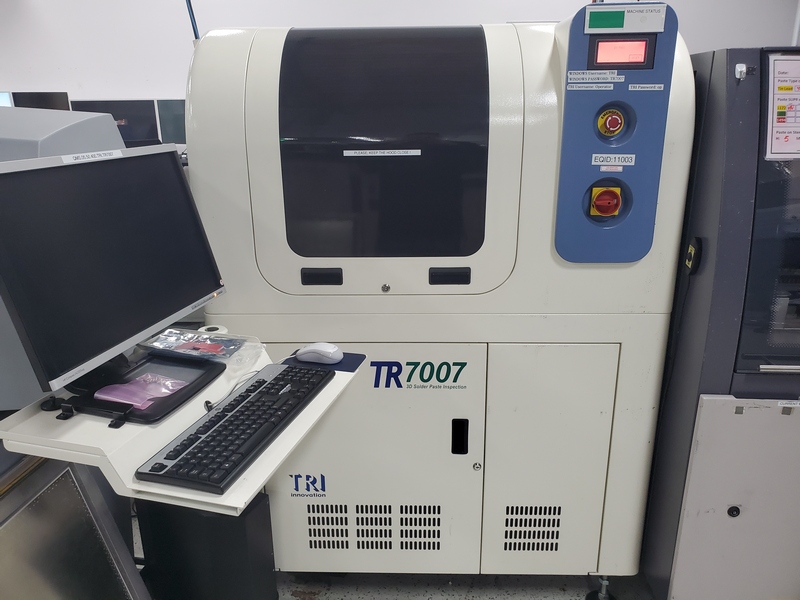

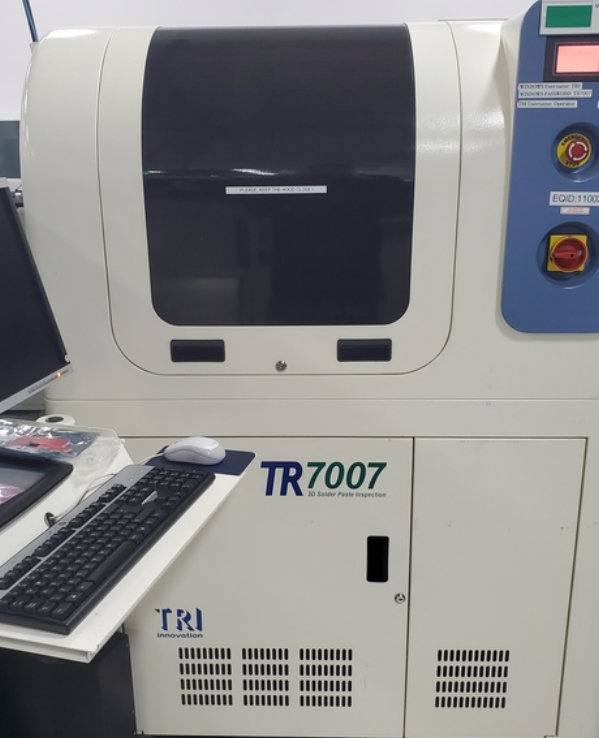

New Oct. 2011. Capable of inspecting at speeds of up to 160 cm2/sec, the TR7007 offers ultra-fast solder paste inspection with unmatched repeatability achieved with no maintenance linear motor design.

TE4742

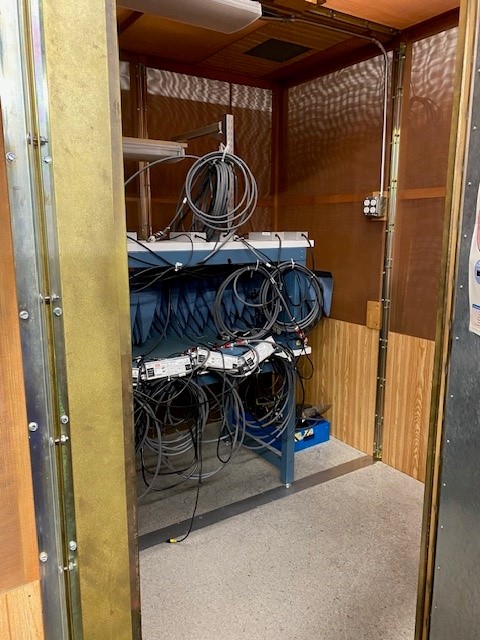

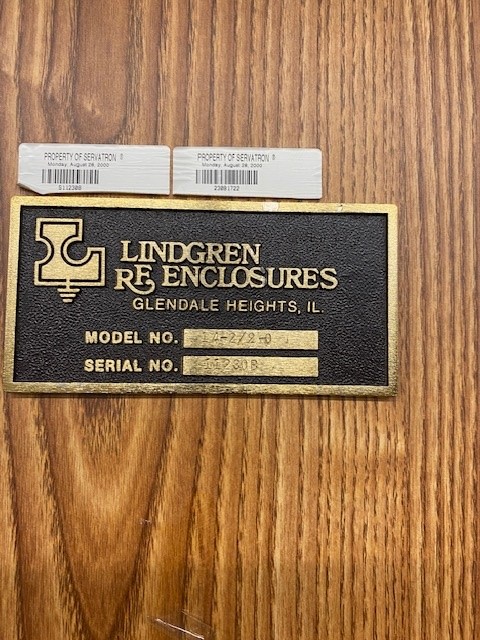

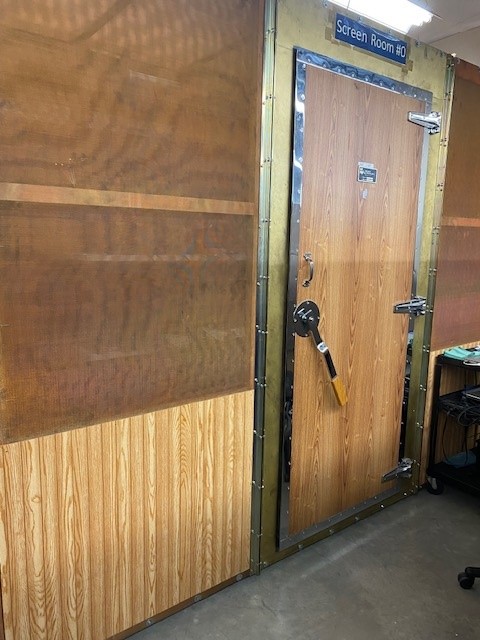

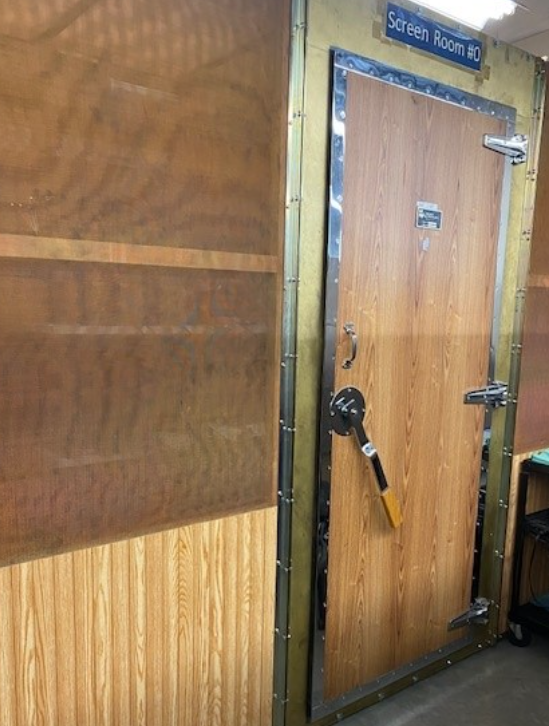

7′ X 10′ Lindgren RF Enclosure. Model 14-2/2/0

TE4305

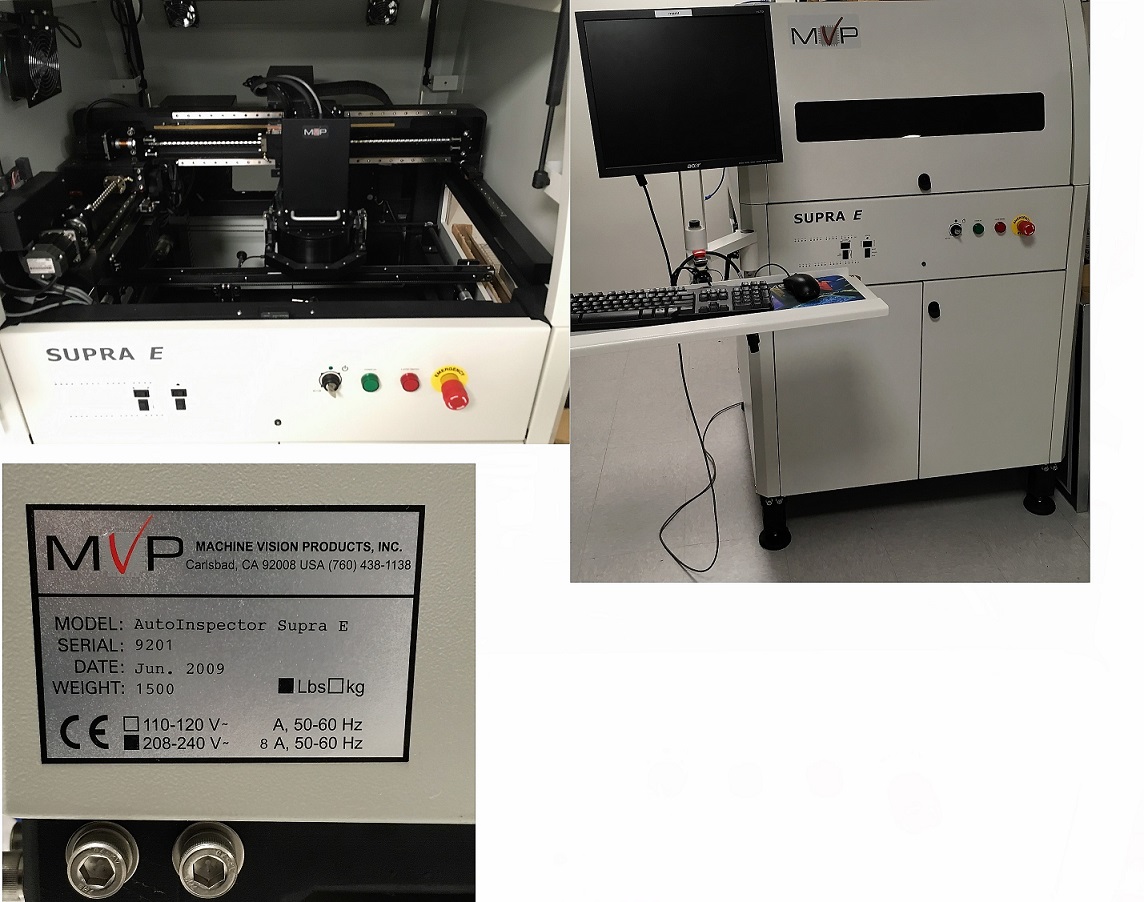

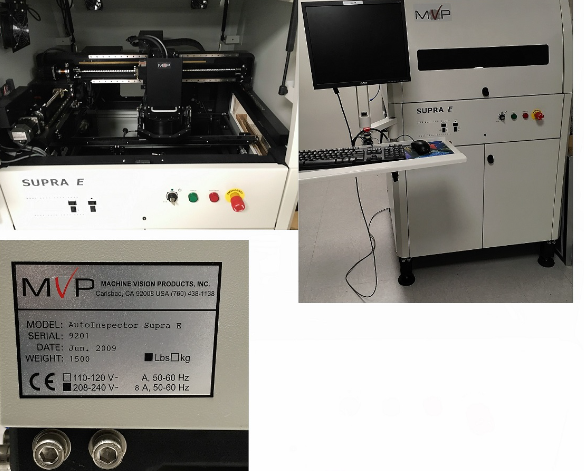

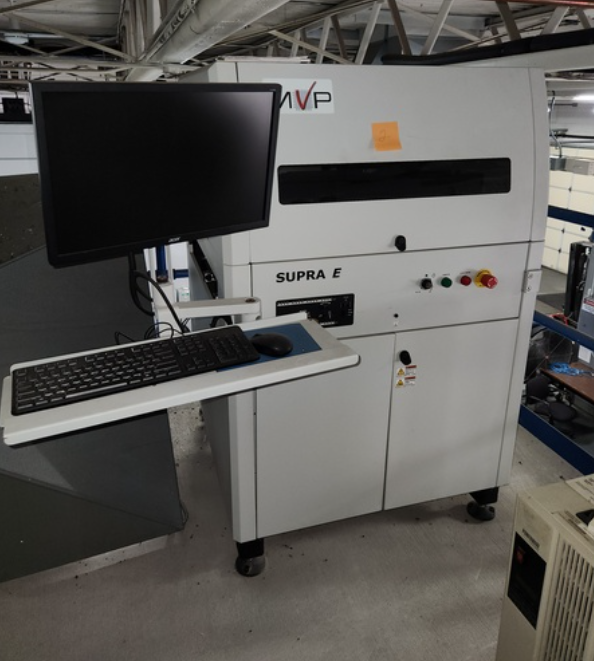

Inline AOI with high resolution 5MP camera, full SMT inspection, full solder paste inspection. New

2009, never installed.

TE4287

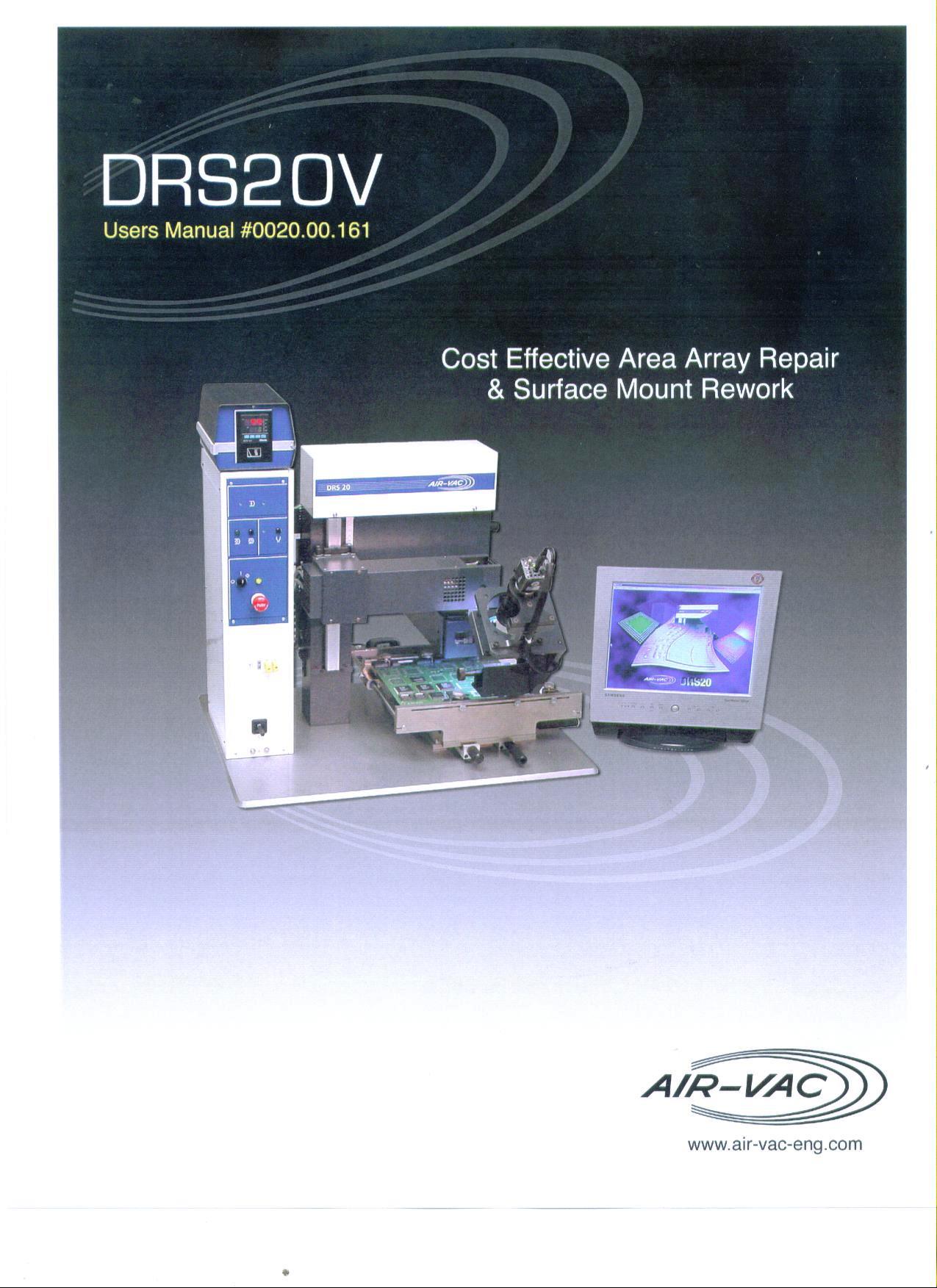

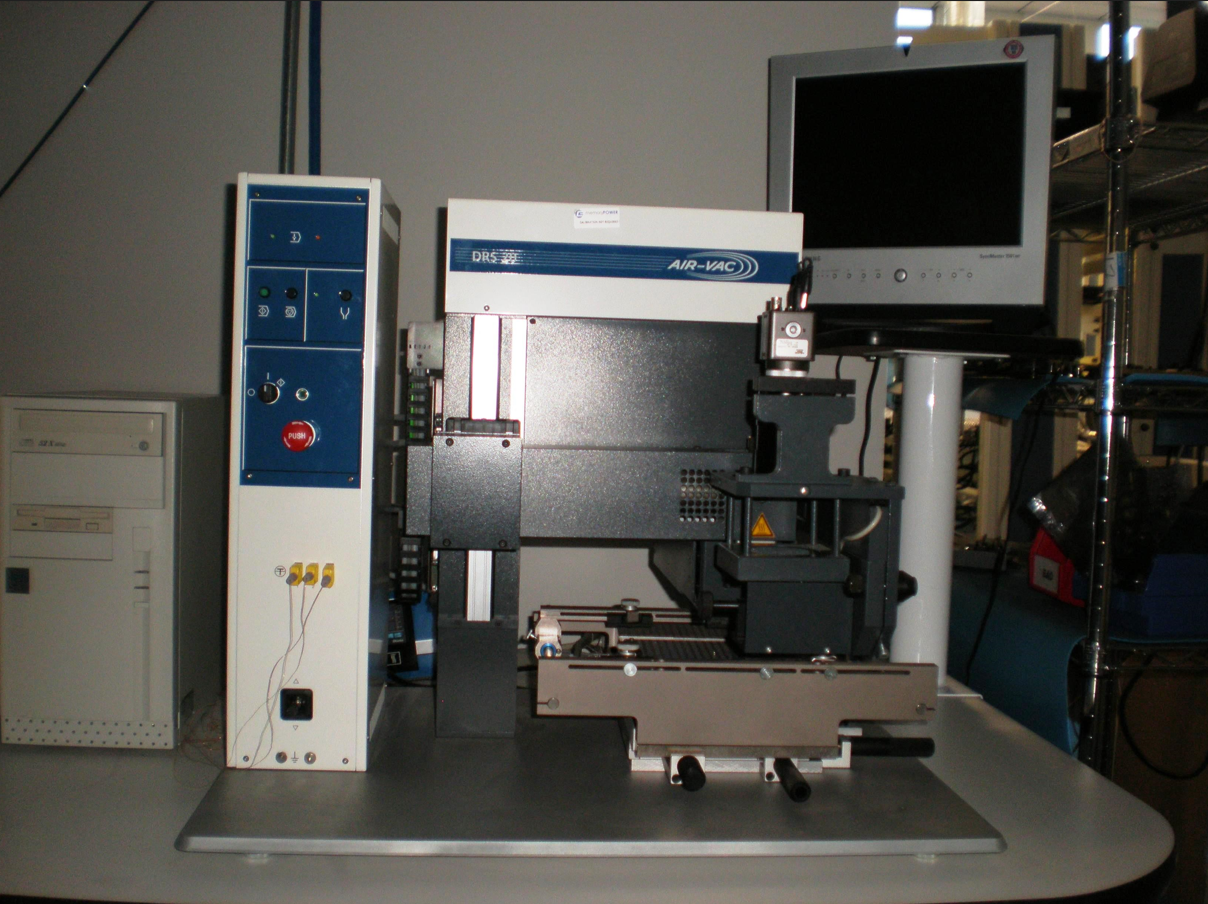

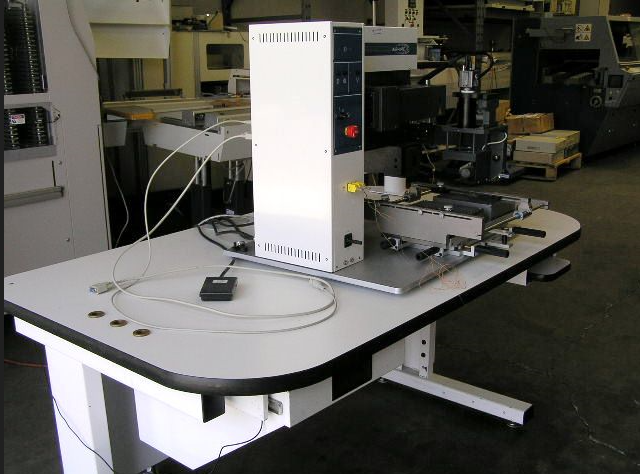

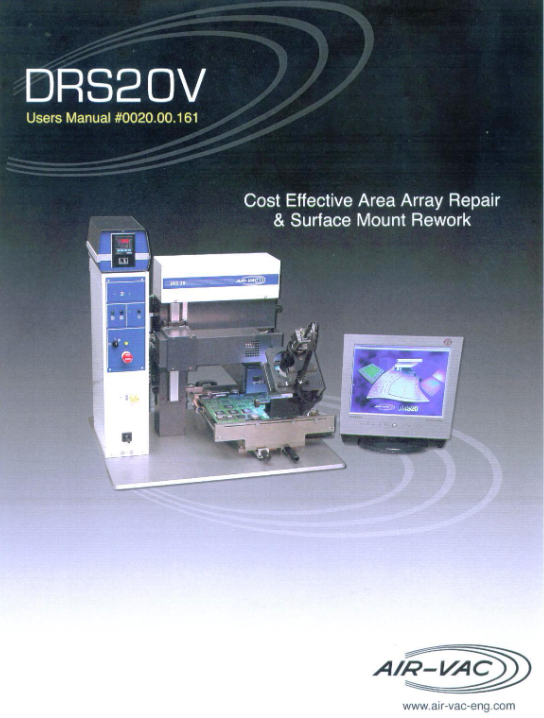

DRS20 KEY FEATURES SUMMARY

CAMERA-BASED BEAM-SPLITTER with adjustable red/green LED’s provides outstanding alignment capability; PC provides easy to use, multi-event process control; Single position alignment, placement and reflow eliminates movement of the assembly after alignment; Motorized Z axis provides automated removal and placement.
